Linear Grilles
Are appropriate for multi purpose usage.Are
produced from aluminium profile which is
specially formed as wide narrow chested
on fan-coil and radiator with a straight

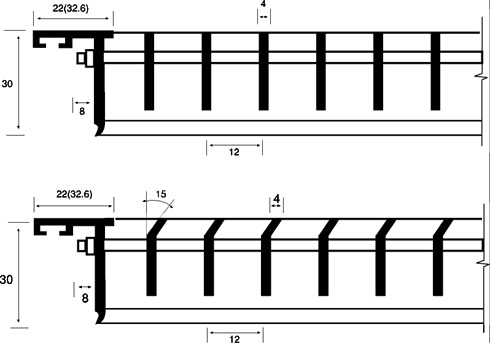

15' dihedral angle structure. Damper adjustable.
Fixed as screwed, having a safety catch
and fastened by latch can be produced as
eloksal, analog eloktrostatic painted upon
request. Latch fatening applications done
as blind chest.
Standard
Measurements |
L |
300 |
500 |
500 |
750 |
750 |
1000 |
1000 |
1000 |
1000 |
H |
75 |
75 |
150 |
150 |
250 |
150 |
250 |
300 |
500 |

|
